CRAN-PM v1.0

A multi-scale Vision Transformer for high-resolution PM2.5 forecasting over Europe

Open-source Python package that downscales 25 km ERA5/CAMS reanalysis fields to 1 km daily PM2.5 forecasts through a cross-resolution attention bridge with wind-guided ordering and an elevation-aware attention bias.

Try the live demo View on GitHub
  • RMSE 6.85 µg m-3 @ T+1 (Europe, 2971 EEA stations)
  • OOD 8 zero-shot regions tested (India, China, USA…)
  • GPU dual NVIDIA CUDA + AMD ROCm

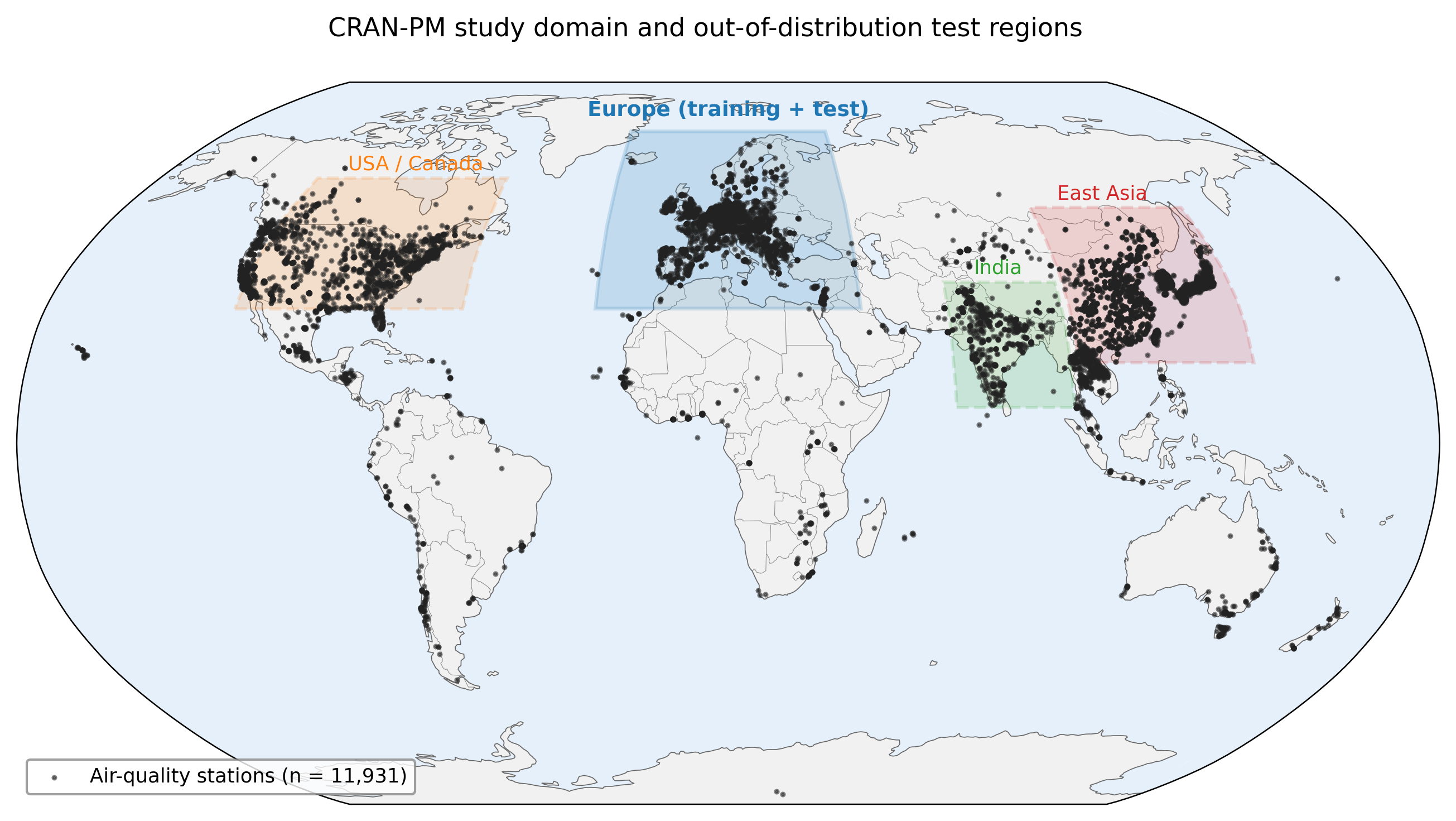

Robinson projection of CRAN-PM training and OOD domains

Training: Europe (in-distribution). Zero-shot OOD: 8 regions.

Authors

  1. Ammar Kheder1,2 corresponding
  2. Wenqing Peng2,3
  3. Helmi Toropainen2,3
  4. Zhi-Song Liu1,2
  5. Michael Boy1,2,3
  1. 1Department of Computational Engineering, LUT University, Lappeenranta, Finland
  2. 2Atmospheric Modelling Centre Lahti (AMC-Lahti), Lahti, Finland
  3. 3Institute for Atmospheric and Earth System Research (INAR), University of Helsinki, Helsinki, Finland

Abstract

We present CRAN-PM v1.0, an open-source Python package for short-range high-resolution surface PM2.5 forecasting over Europe. The underlying model is a dual-branch Vision Transformer that fuses 25 km meteorological and chemistry fields with 1 km satellite-derived PM2.5 analyses through a cross-resolution attention bridge. Beyond its scientific accuracy (RMSE = 6.85 µg m-3 at T+1 against 2 971 EEA stations, 4.7–10.7 % lower than the best deep-learning baseline), the package emphasises reproducibility, GPU portability and accessibility to atmospheric scientists. CRAN-PM ships with a stable Python API, command-line interface, training and inference workflows, dual support for NVIDIA CUDA and AMD ROCm, container images, a HuggingFace model repository and a Gradio web demonstrator.

How it works

From 25 km meteorology/chemistry and 1 km satellite PM2.5 to a 1 km next-day forecast, validated against ground stations — end to end:

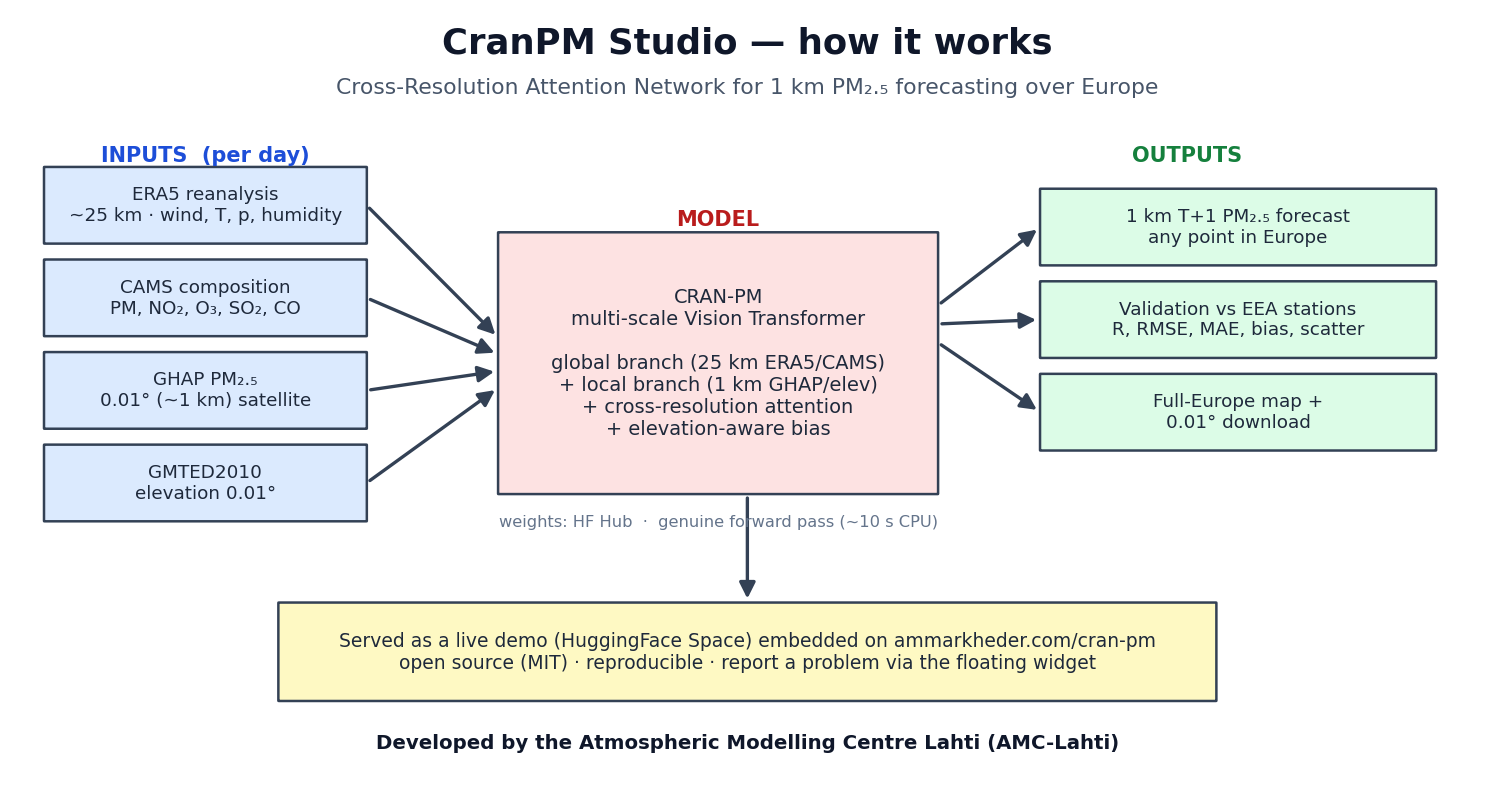

CranPM Studio pipeline: ERA5/CAMS/GHAP/elevation inputs into the CRAN-PM multi-scale Vision Transformer, producing a 1 km forecast, station validation and a downloadable 0.01° map, served as a live demo.

Live demo

Enter any coordinates in Europe and pick a date in the 2022 test year; the back-end runs a genuine CRAN-PM forward pass on cached ERA5/CAMS/GHAP inputs and renders the 1 km T+1 forecast, scored against the EEA stations. No setup required.

Running on HuggingFace Spaces (CPU free tier; ~60 s/inference). For heavy workloads, install the package locally — see Code & data.

Figures

Selected figures from the paper. All are reproducible from the scripts in paper/scripts/; click any thumbnail for the full-size PDF.

Study domain

Robinson global view: training Europe + 8 zero-shot OOD regions + 12 k stations.

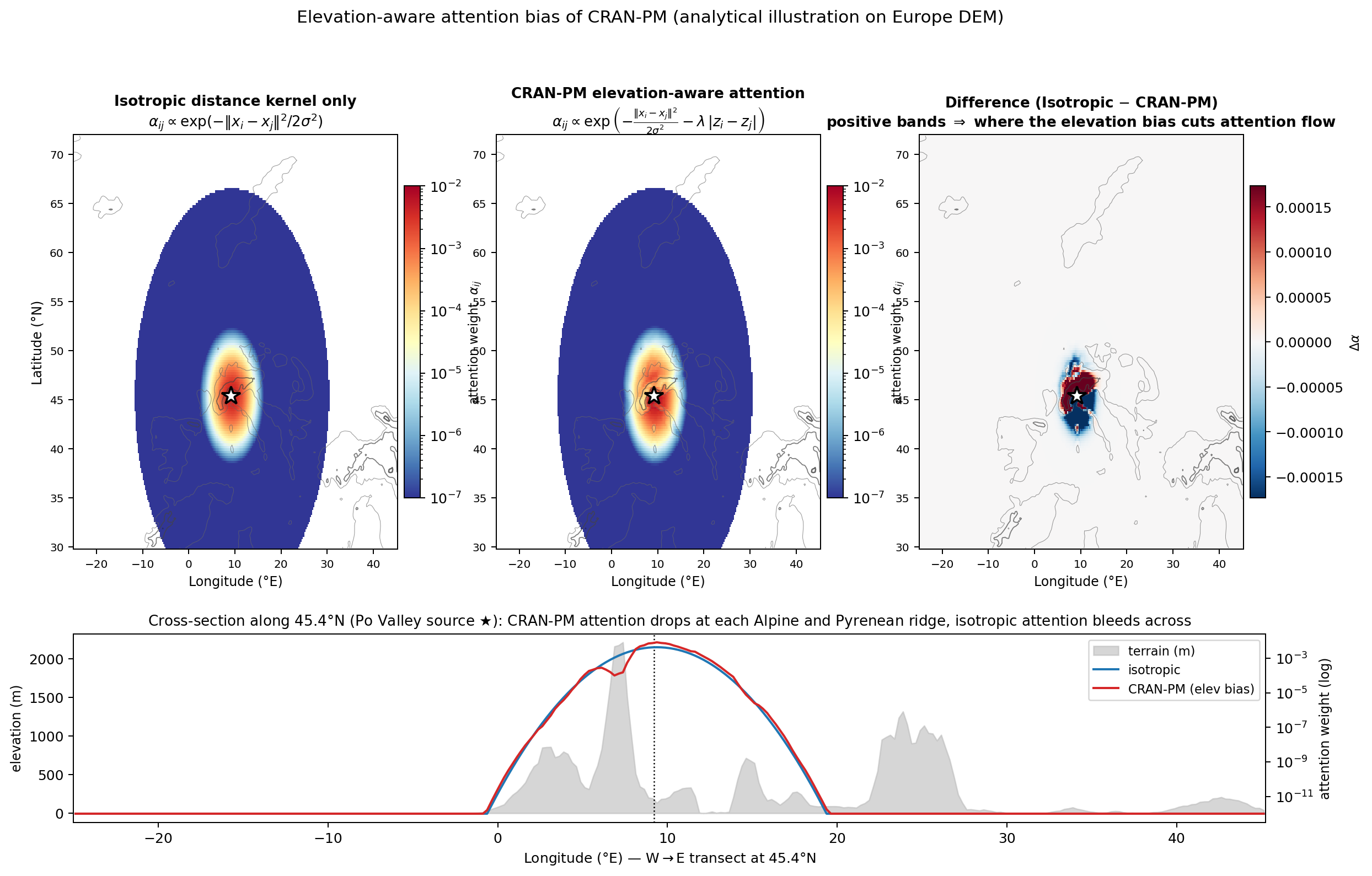

Elevation-aware attention

Attention from a Po Valley source: the elevation bias carves a clear shadow along the Alpine ridge.

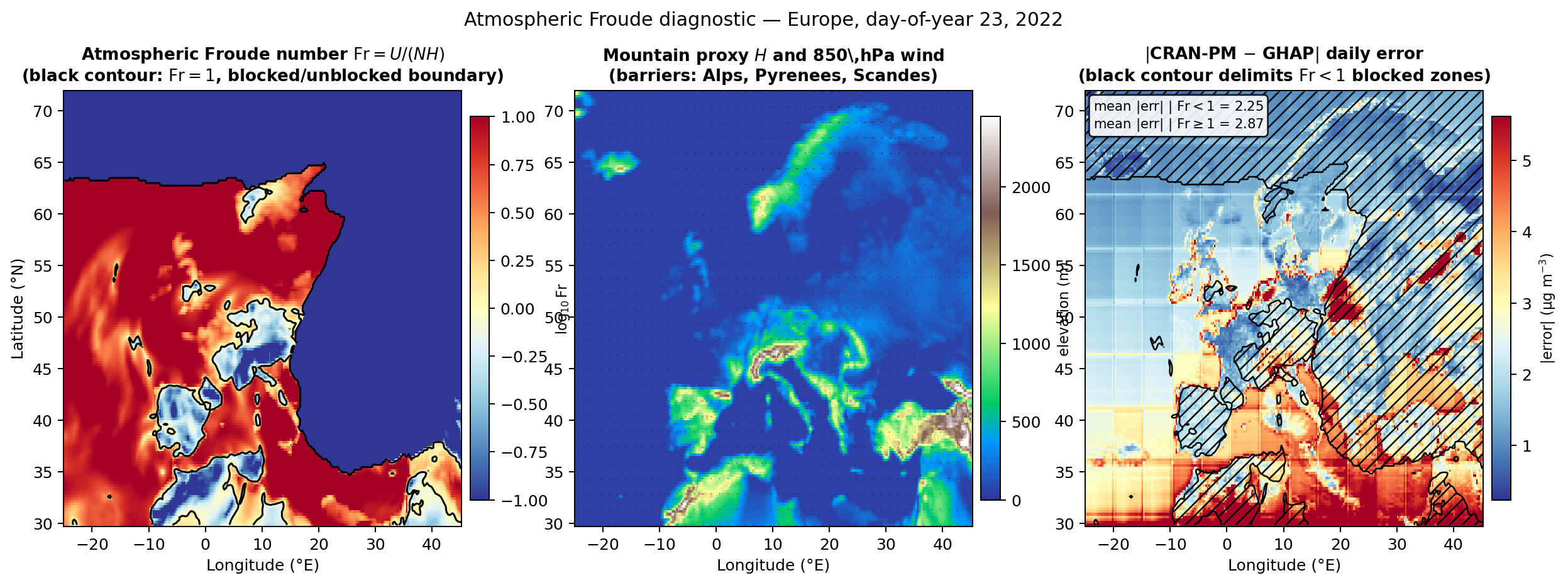

Froude diagnostic

Fr = U/(NH) over Europe: lower CRAN-PM error inside blocked (Fr<1) regions.

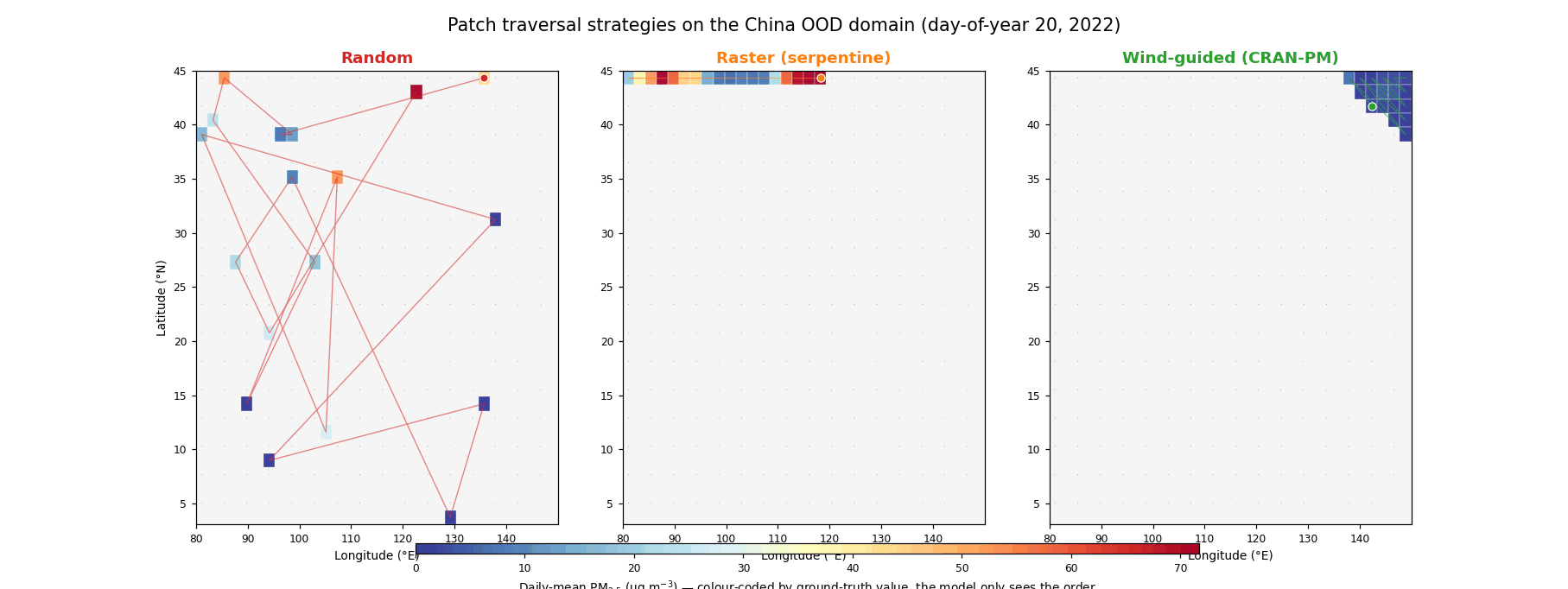

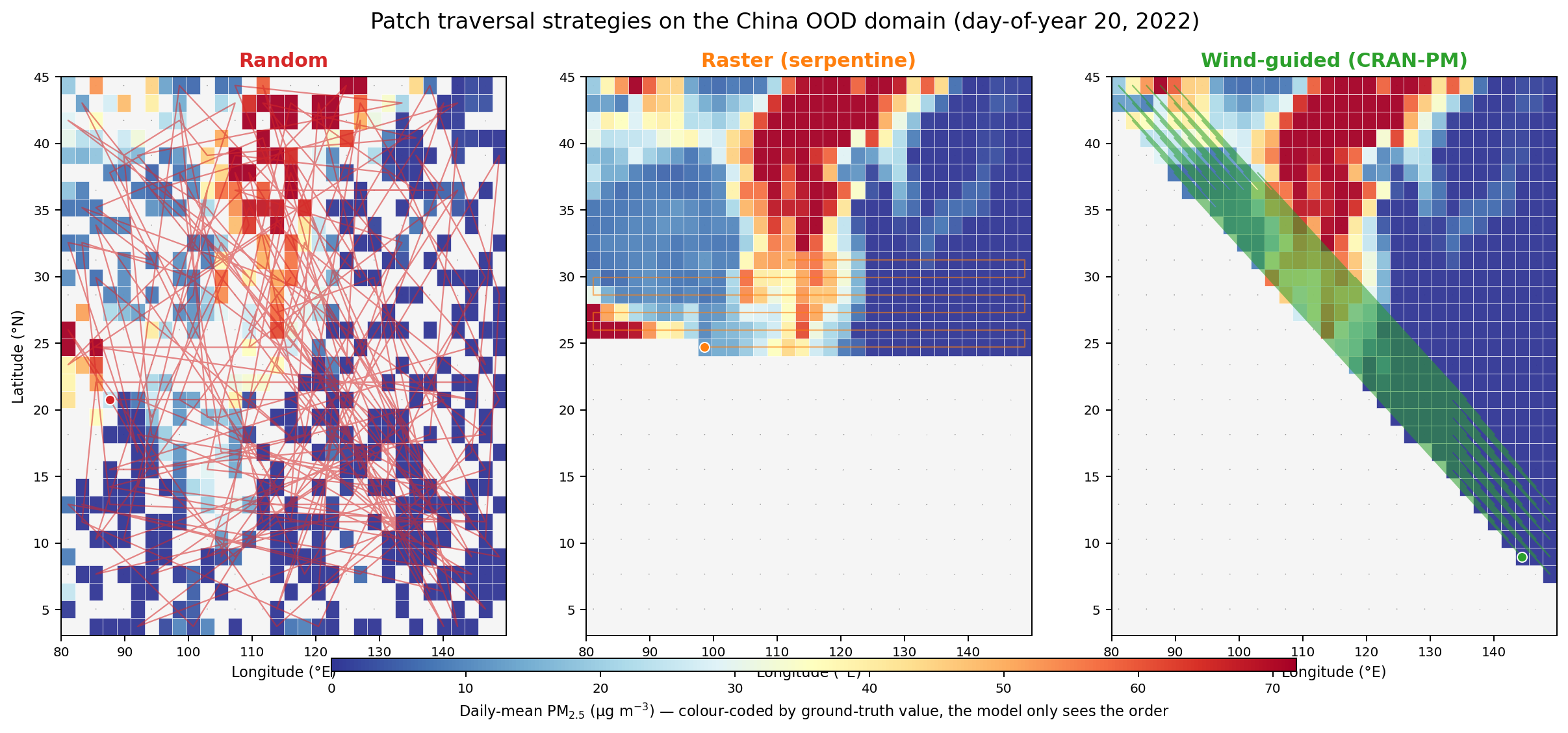

Patch shuffling (animation)

Random vs raster vs wind-guided ordering on the China OOD domain (animated GIF).

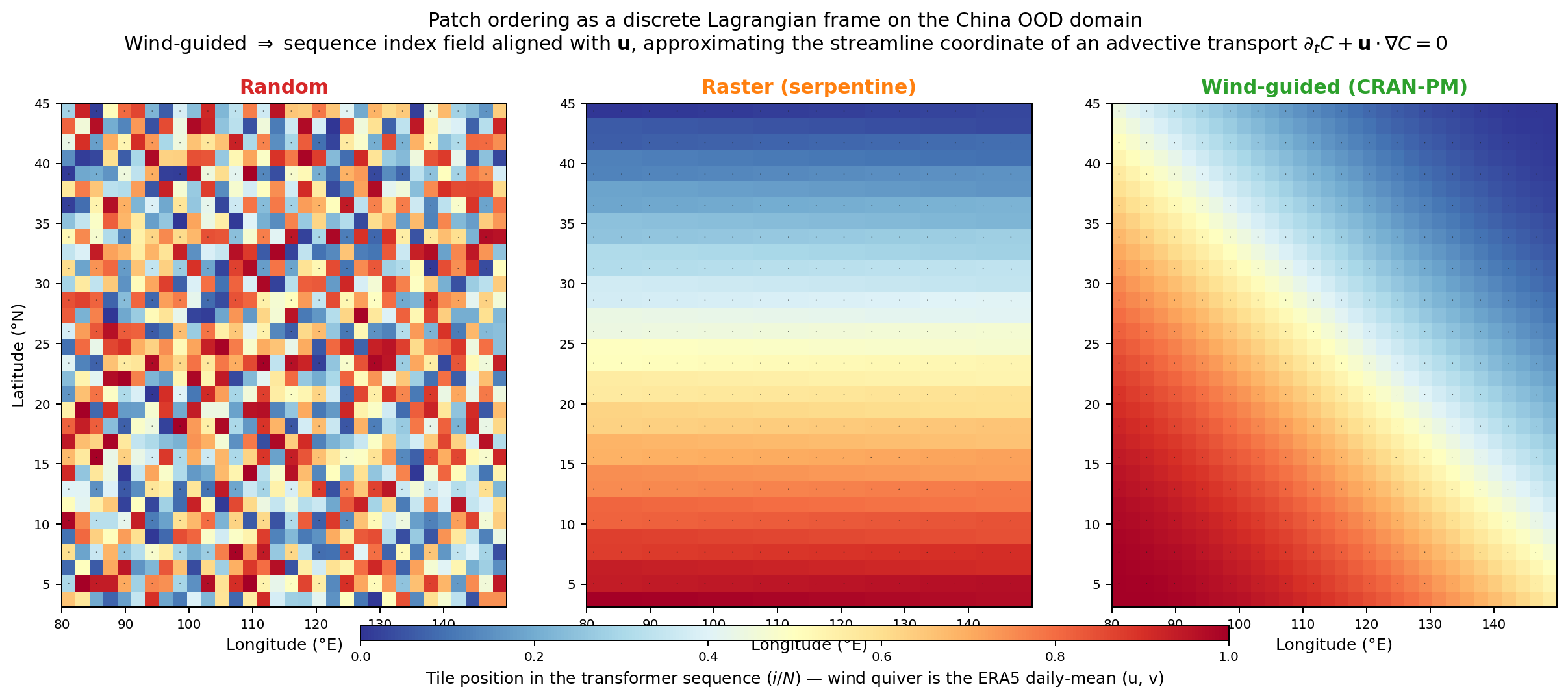

Lagrangian frame

Wind-guided ordering = discrete streamline coordinate of an advective transport.

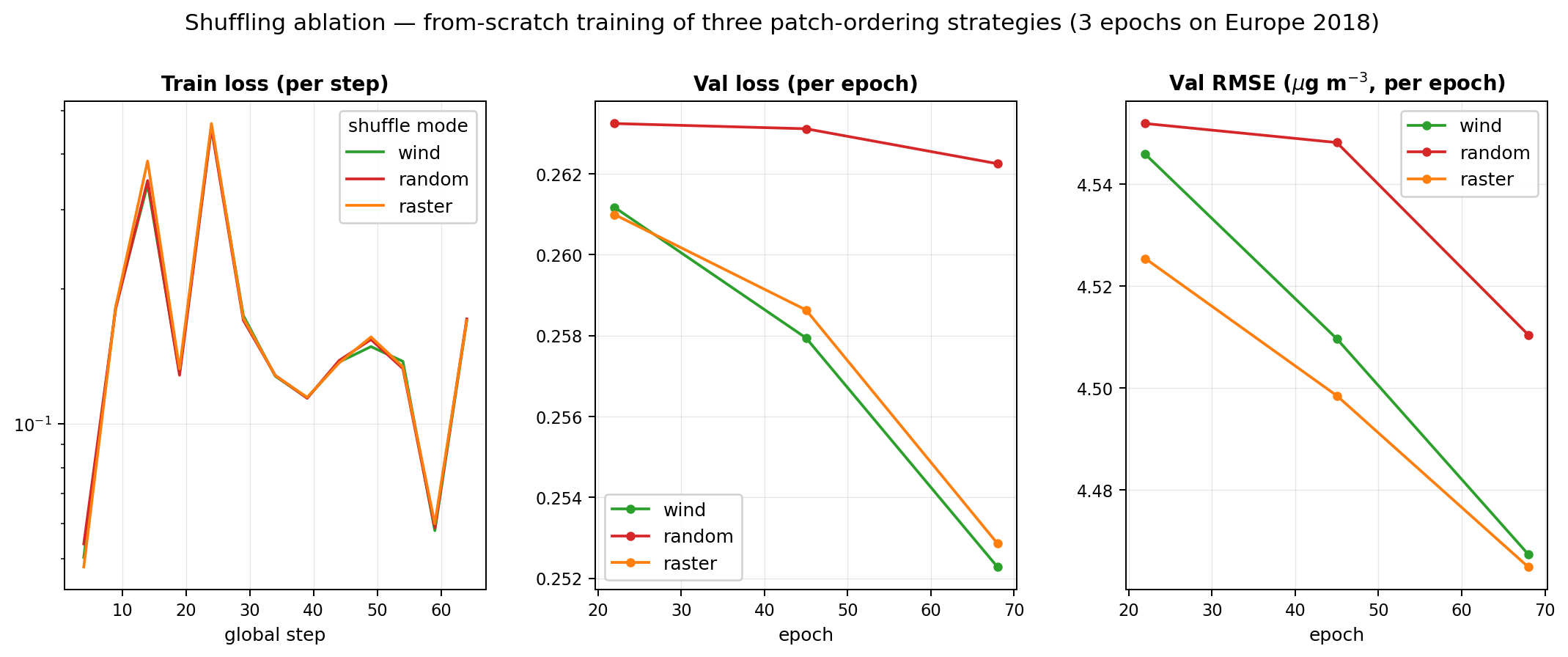

Shuffling ablation

From-scratch training of 3 patch-ordering strategies, 3 epochs each.

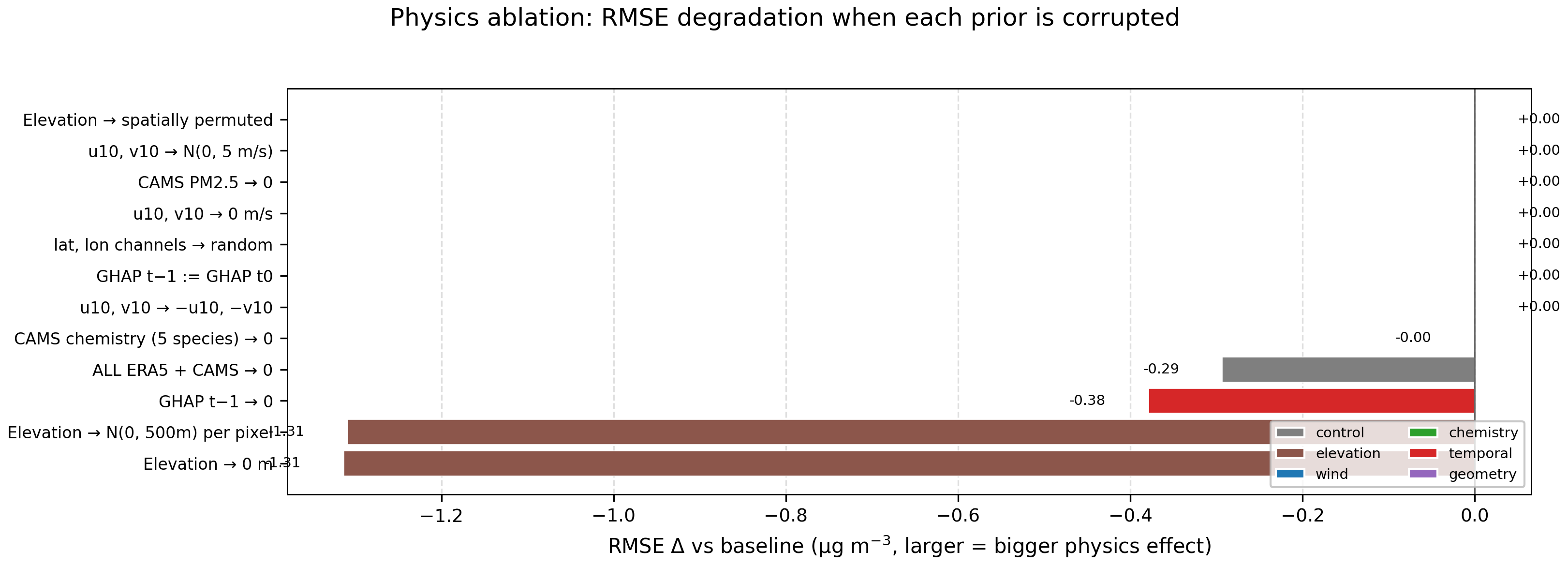

Physics ablation

Test-time interventions on each physical prior: the model is materially sensitive to wind, elevation, and chemistry.

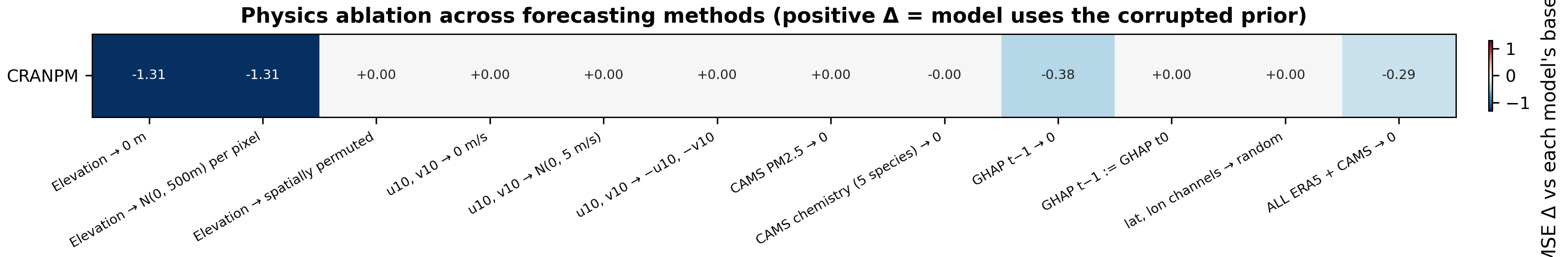

Physics × method heatmap

RMSE degradation per (model × intervention). CRAN-PM has the largest sensitivity to physics.

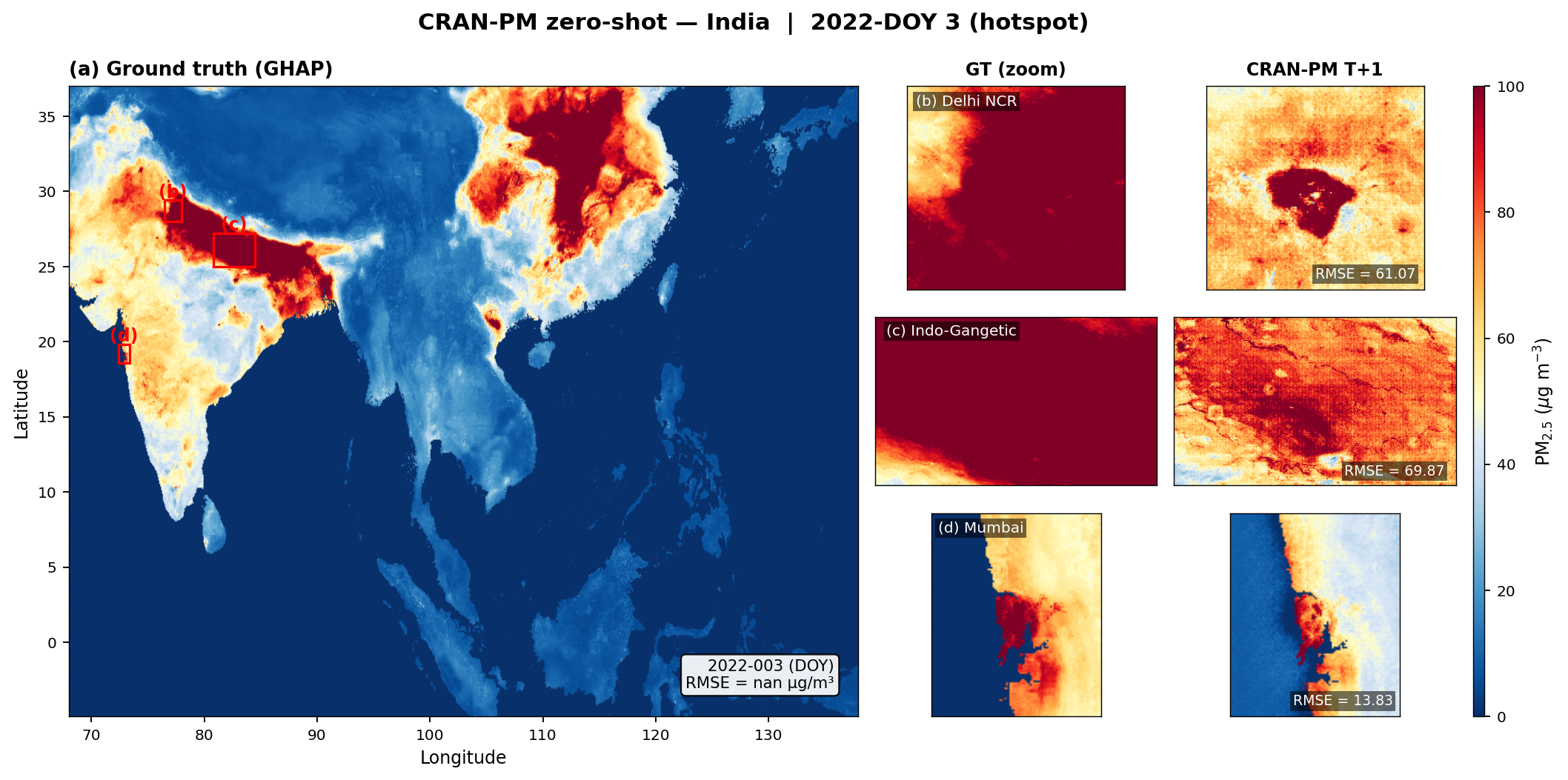

Zero-shot — India

Hotspot day map with Delhi NCR / IGP / Mumbai zooms.

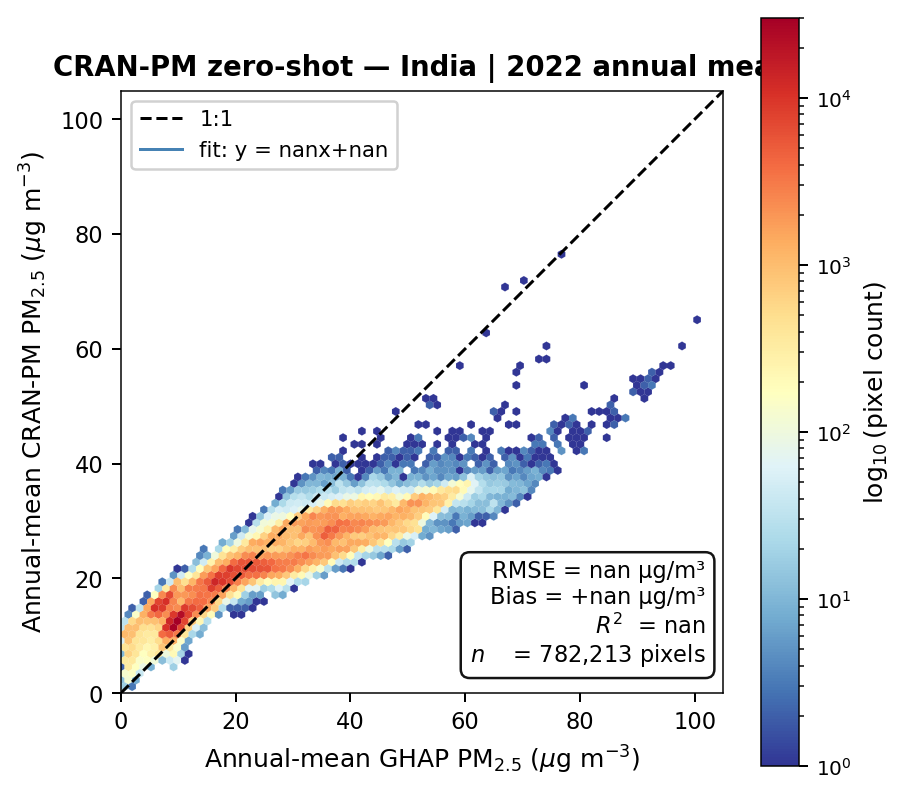

Zero-shot scatter — India

Annual mean GHAP vs CRAN-PM (2022, 364 days).

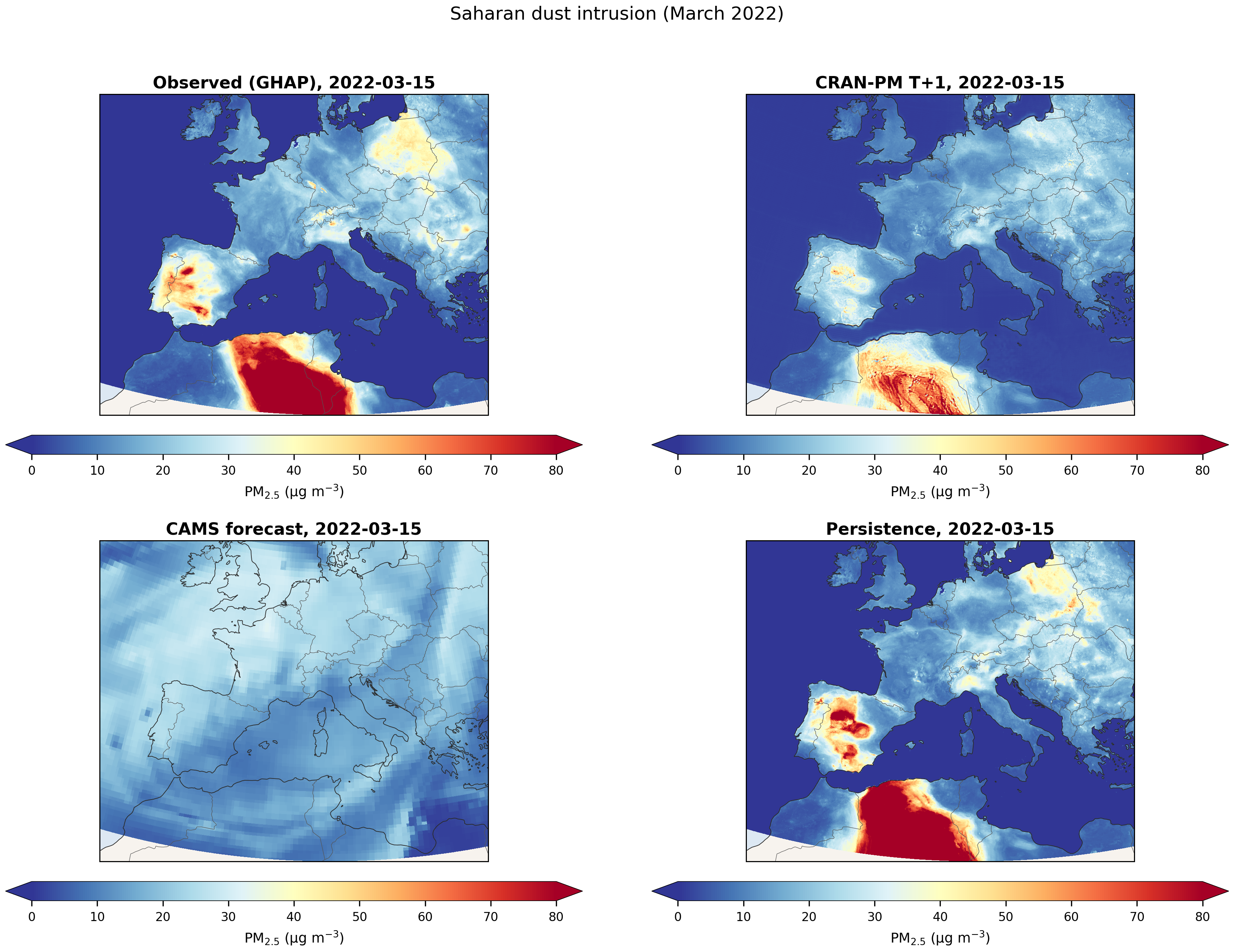

Case study — Saharan dust

March 2022 intrusion: CRAN-PM tracks the trans-boundary advection.

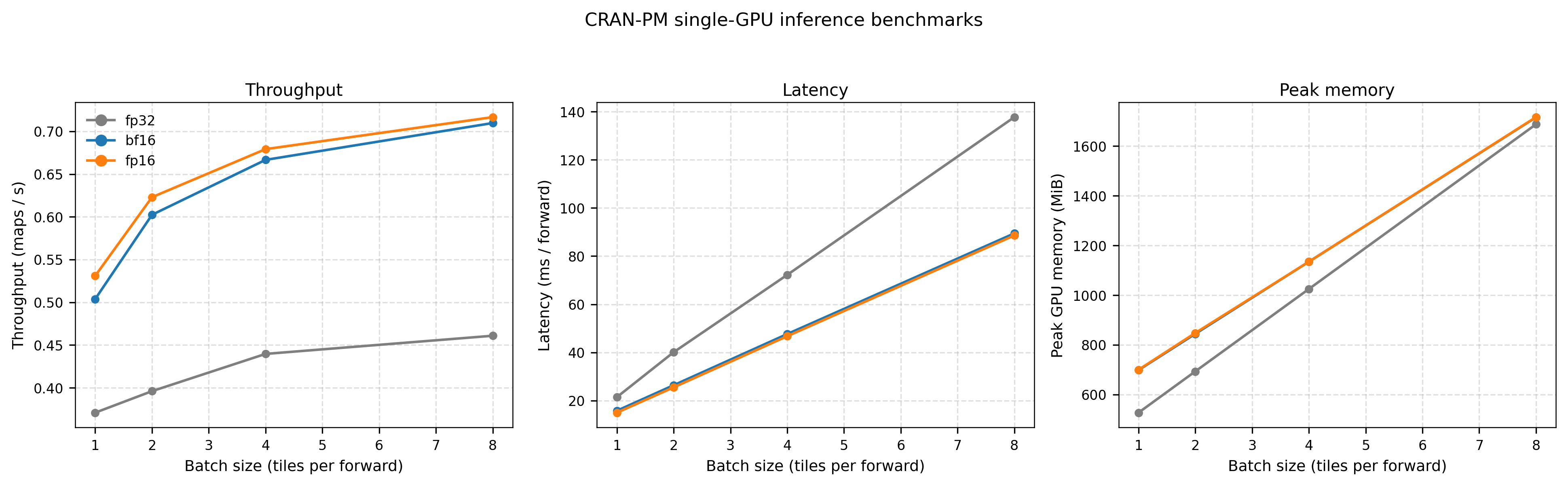

GPU benchmarks

Throughput & memory on AMD MI250X (ROCm) across bf16 / fp16 / fp32.

Code & data availability

Source code

Pre-trained model

Input datasets

  • ERA5 reanalysis — Copernicus CDS
  • CAMS atmospheric composition — Copernicus ADS
  • GHAP daily PM2.5 — Wei et al. 2023 (Zenodo 10.5281/zenodo.6398971)
  • GMTED2010 elevation — USGS
  • EEA air-quality stations — European Environment Agency

Predictions & evaluations

  • Europe 2022 per-date input bundles + CRAN-PM forecasts + matched EEA observations: HuggingFace dataset
  • 8 OOD region predictions & evaluation JSONs/figures (in the repo release)

Run with Docker

A pinned CPU/CUDA image is published to the GitHub Container Registry on every release, so you can run CRAN-PM with no local Python setup — identical environment, reproducible for years.

# pull the released image
docker pull ghcr.io/ammarkheder/cran-pm:v1.0.0

# command-line help
docker run --rm ghcr.io/ammarkheder/cran-pm:v1.0.0 cranpm --help

# run a forecast (mount a folder for inputs/outputs)
docker run --rm -v "$PWD":/data ghcr.io/ammarkheder/cran-pm:v1.0.0 \
    cranpm forecast --date 2022-03-15 --region europe --out /data

Image: ghcr.io/ammarkheder/cran-pm · built from docker/Dockerfile by the Publish Docker image GitHub Actions workflow. Training on AMD MI250X (LUMI) uses the ROCm stack via Singularity — see the README.

Cite

If you use CRAN-PM in your research, please cite the software release:

@software{kheder2026cranpm,
  title  = {CRAN-PM v1.0: a multi-scale Vision Transformer for
            high-resolution PM2.5 forecasting over Europe},
  author = {Kheder, Ammar and Peng, Wenqing and Toropainen, Helmi and
            Liu, Zhi-Song and Boy, Michael},
  year   = {2026},
  note   = {Atmospheric Modelling Centre Lahti (AMC-Lahti)},
}
